35183 | AMP

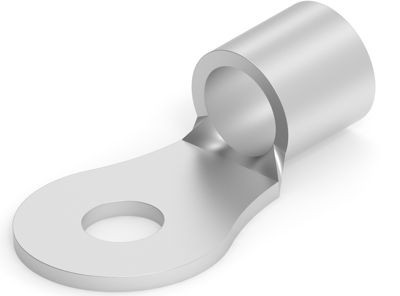

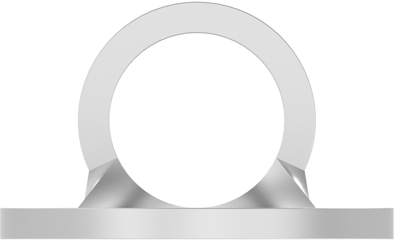

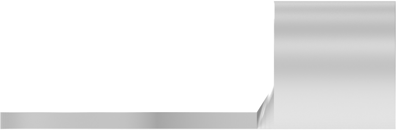

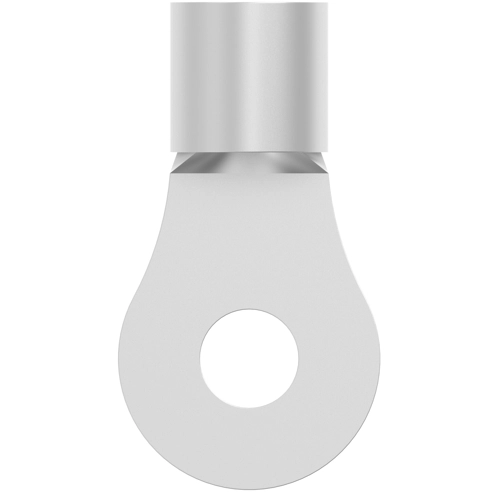

Uninsulated ring cable lug, 34-35 mm², 8.33 mm, M8, metal, 35183
Order No.: 39P8248
EAN: 4099889600230
MPN:
35183
Unit Price (€ / pc.)
5.9143 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 35183, AMP
Shape Description: RING-050, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 10.405 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 34 – 35 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: 1.85 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 34-35 mm² | |
| Hole diameter | 8.33 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
