35277 | AMP

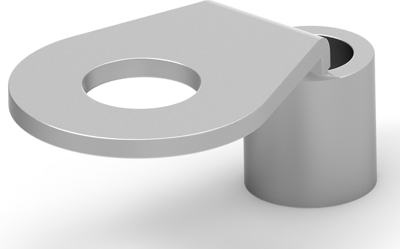

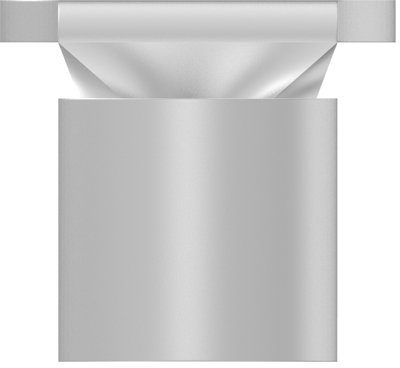

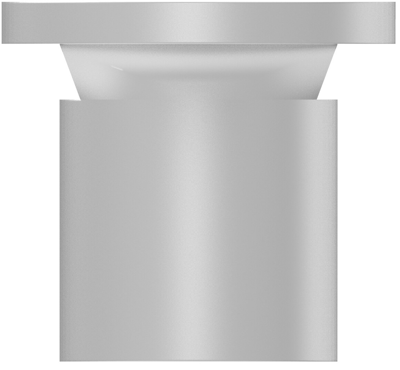

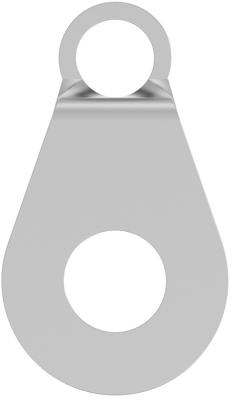

Uninsulated ring cable lug, 8.0 mm², AWG 8, 6.73 mm, M6, metal, 35277
Order No.: 39P8740
EAN: 4099889603637
MPN:
35277
Unit Price (€ / pc.)
4.1055 € *
Available: 0 pcs.
Available in 5 Days: 6,371 pcs.
Leadtime: 39 Weeks **
Total Price:
4.11 € *
Price list
Quantity
Price per unit*
100 pcs.
4.1055 €
200 pcs.
3.8080 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 35277, AMP
Shape Description: RING-080, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: 90°, Weight per Piece: 3.784 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 1.22 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 8 | |
| Colour | metal | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 8.0 mm² | |
| Hole diameter | 6.73 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
