35664 | AMP

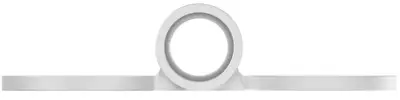

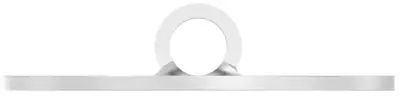

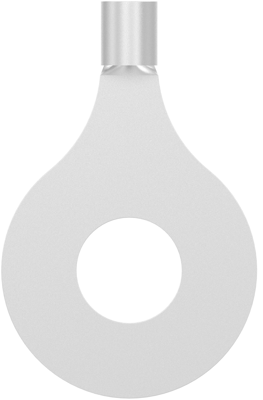

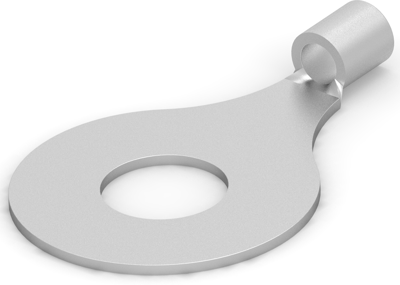

Uninsulated ring cable lug, 6.64-10.5 mm², AWG 8, 13.08 mm, M12, metal, 35664
Order No.: 39P8722
EAN: 4099889603460
MPN:
35664
Unit Price (€ / pc.)
3.9151 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
3.6057 €
50 pcs.
3.2487 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 35664, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 11.365 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 6.64 – 10.5 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: 1.22 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 8 | |
| Farbe | metall | |
| Gewindegröße | M12 | |
| Isoliert | No | |
| Leiterquerschnitt | 6,64-10,5 mm² | |
| Lochdurchmesser | 13.08 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 170 °C |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
