36929 | AMP

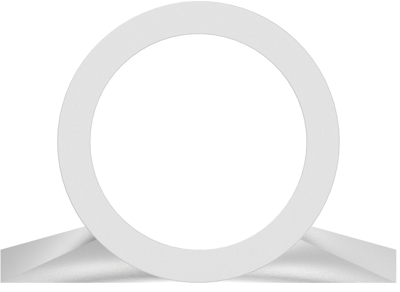

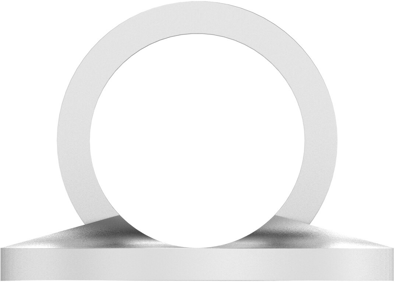

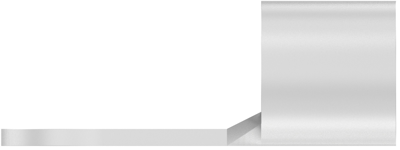

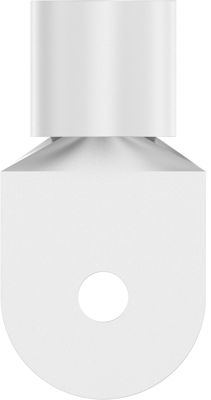

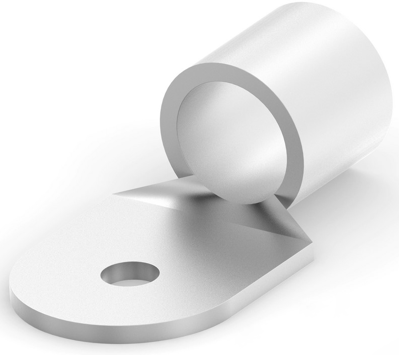

Uninsulated ring cable lug, 76.3-96 mm², AWG 4, 13.08 mm, M12, metal, 36929
Order No.: 39P8264
EAN: 4099889600322
MPN:
36929
Unit Price (€ / pc.)
13.4589 € *
Available: 0 pcs.
Leadtime: On Request **
Ring cable lug, 36929, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 76.208 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 000 AWG, Wire Size: 76.3 – 96 mm², Wire Size: 150500 – 190000 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: 2.31 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 4 | |
| Colour | metal | |
| Thread size | M12 | |
| Isolated | No | |
| Cable cross-section | 76.3-96 mm² | |
| Hole diameter | 13.08 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
