36932 | AMP
Uninsulated ring cable lug, 96.3-117 mm², AWG 4, 9.91 mm, metal, 36932
Order No.: 39P8201
EAN: 4099889599831
MPN:
36932
Unit Price (€ / pc.)
10.9004 € *
Available: 0 pcs.
Leadtime: On Request **

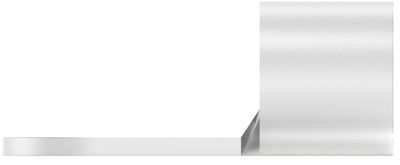

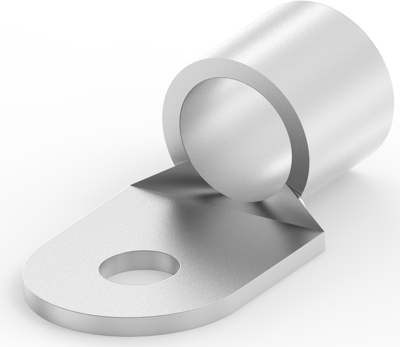

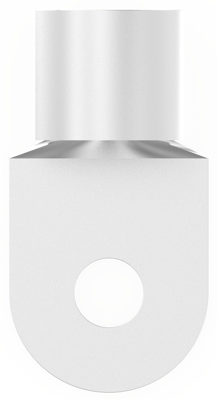

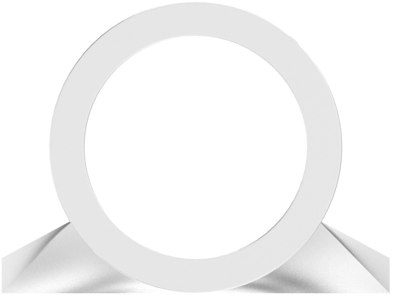

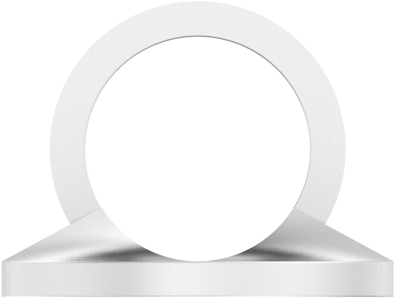

Ring cable lug, 36932, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 43.743 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 0000 AWG, Wire Size: 96.3 – 117 mm², Wire Size: 190000 – 231100 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: 2.6 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 4 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 96.3-117 mm² | |
| Hole diameter | 9.91 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
