4-1377172-5 | AMP
Uninsulated ring cable lug, 76.3-96.3 mm², 13.08 mm, M12, 4-1377172-5
Order No.: 39P8553
EAN: 4099889601947
MPN:
4-1377172-5
Unit Price (€ / pc.)
12.8758 € *
Available: 0 pcs.
Leadtime: On Request **

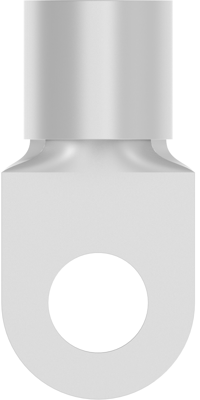

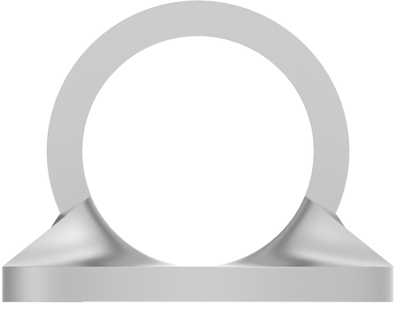

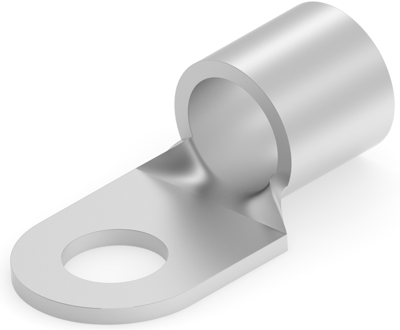

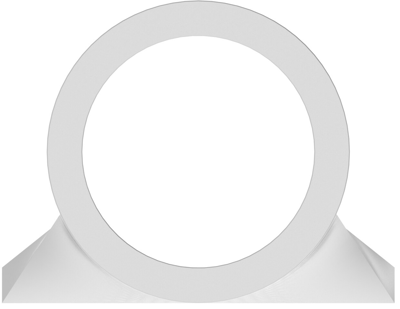

Ring cable lug, 4-1377172-5, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: 76.208 g, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 000 AWG, Wire Size: 76.3 – 96.3 mm², Stud Diameter: 13.08 mm, Tongue Thickness: 0.79 mm, Ring & Spade Overall Length: 54.43 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| Thread size | M12 | |
| Isolated | No | |
| Cable cross-section | 76.3-96.3 mm² | |
| Hole diameter | 13.08 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
