40724 | AMP
Uninsulated ring cable lug, 0.8-2.08 mm², AWG 18 to 13, 4.3 mm, M4, metal, 40724
Order No.: 35P2407
EAN: 4099889589924
MPN:
40724
Unit Price (€ / pc.)
0.0690 € *
Available: 0 pcs.
Available in 5 Days: 11,000 pcs.
Leadtime: 24 Weeks **
Total Price:
0.07 € *
Price list
Quantity
Price per unit*
11000 pcs.
0.0690 €
22000 pcs.
0.0643 €
*incl. VAT plus shipping costs
**Subject to prior sale

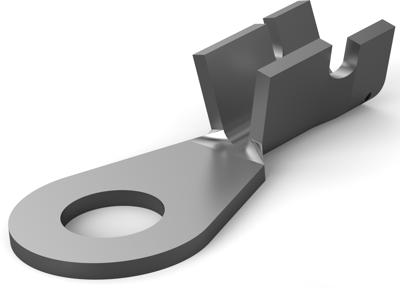

Ring cable lug, 40724, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.872 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 18 – 14 AWG, Wire Size: 0.8 – 2.08 mm², Wire Size: 1624 – 4106 CMA, Stud Diameter: 4.3 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 11000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 18 to 13 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 0.8-2.08 mm² | |
| Hole diameter | 4.3 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
