40763 | AMP
Uninsulated forked cable lug, 0.5-1.4 mm², AWG 20 to 16, 3.68 mm, M3.5, metal, 40763
Order No.: 35P2509
EAN: 4099889590562
MPN:
40763
Unit Price (€ / pc.)
0.1095 € *
Available: 0 pcs.
Available in 5 Days: 15,000 pcs.
Leadtime: 35 Weeks **
Total Price:
1,642.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
0.1095 €

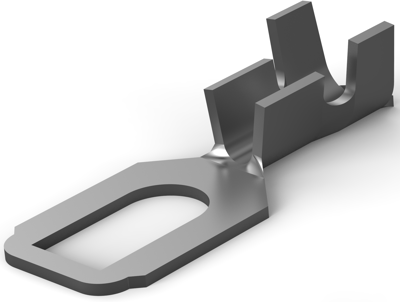

Fork cable lug, 40763, AMP
Shape Description: Square Spade, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: .426 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 20 – 16 AWG, Wire Size: .5 – 1.4 mm², Wire Size: 1021 – 2582 CMA, Stud Diameter: 3.68 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 15000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | Gabelkabelschuh | |
| AWG cross-section | AWG 20 bis 16 | |
| Colour | metall | |
| Thread size | M3,5 | |
| Isolated | No | |
| Cable cross-section | 0,5-1,4 mm² | |
| Hole diameter | 3.68 mm | |
| Material | Messing, verzinnt | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
