41333 | AMP
Uninsulated ring cable lug, 0.8-2.0 mm², AWG 18 to 14, 5 mm, metal, 41333
Order No.: 35P2324
EAN: 4099889589269
MPN:
41333
Unit Price (€ / pc.)
0.0393 € *
Available: 0 pcs.
Leadtime: 21 Weeks **

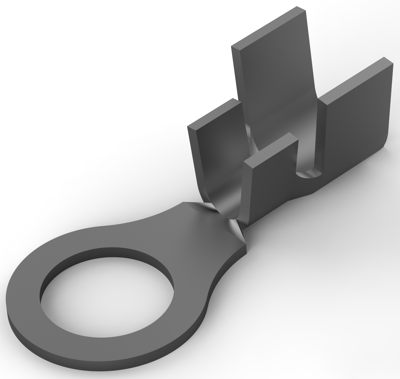

Ring cable lug, 41333, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.484 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 18 – 14 AWG, Wire Size: 0.8 – 2 mm², Wire Size: 1624 – 4106 CMA, Stud Diameter: 5 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 12500, Ring & Spade Packaging Method: Strip/Reel, Comment: Not recommended for 2 wire applications
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 18 bis 14 | |
| Colour | metall | |
| Isolated | No | |
| Cable cross-section | 0,8-2,0 mm² | |
| Hole diameter | 5 mm | |
| Material | Messing, verzinnt | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
