41346 | AMP

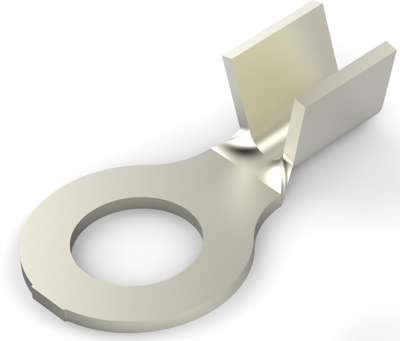

Uninsulated ring cable lug, 0.8-2.0 mm², AWG 18 to 14, 4.34 mm, M4, metal, 41346
Order No.: 35P2376
EAN: 4099889589719
MPN:
41346
Unit Price (€ / pc.)
0.0821 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 41346, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .279 g, Ring & Spade Plating Material: Nickel, Contact Base Material: Steel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: Without, Wire Size: 18 – 14 AWG, Wire Size: .8 – 2 mm², Wire Size: 1624 – 4106 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 250 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 20000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 18 to 14 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 0.8-2.0 mm² | |
| Hole diameter | 4.34 mm | |
| Material | steel, nickel-plated | |
| max. operating temperature | 250 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
