41495 | AMP

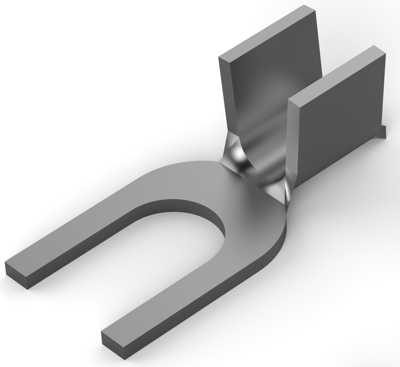

Uninsulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, 5 mm, metal, 41495
Order No.: 35P2508
EAN: 4099889590555
MPN:
41495
Unit Price (€ / pc.)
0.1166 € *
Available: 0 pcs.
Available in 5 Days: 48,000 pcs.
Leadtime: 26 Weeks **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
8000 pcs.
0.1166 €
16000 pcs.
0.1083 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 41495, AMP
Shape Description: Round Spade, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: .816 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 6529 – 10382 CMA, Stud Diameter: 5 mm, Tongue Thickness: .76 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 8000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 3.0-6.0 mm² | |
| Hole diameter | 5 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
