41604 | AMP

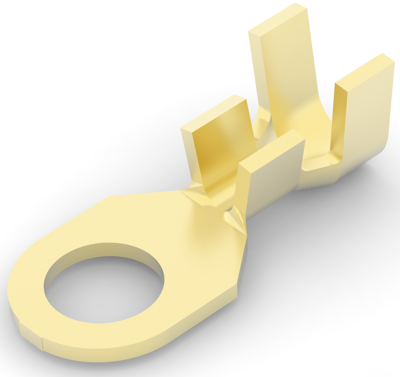

Uninsulated ring cable lug, 2.0-3.0 mm², AWG 14 to 12, 6.73 mm, M6, metal, 41604
Order No.: 35P2369
EAN: 4099889589665
MPN:
41604
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Available in 5 Days: 12,000 pcs.
Leadtime: 25 Weeks **
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.3094 €
6000 pcs.
0.3023 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rings and Spades, 41604, AMP
Shape Description: D Shaped, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 2.199 g, Ring & Spade Plating Material: Unplated, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 14 – 12 AWG, Wire Size: 2 – 3 mm², Wire Size: 4106 – 6529 CMA, Stud Diameter: 6.73 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 3000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 14 to 12 | |
| Colour | metal | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 2.0-3.0 mm² | |
| Hole diameter | 6.73 mm | |
| Material | brass | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
