50834 | AMP

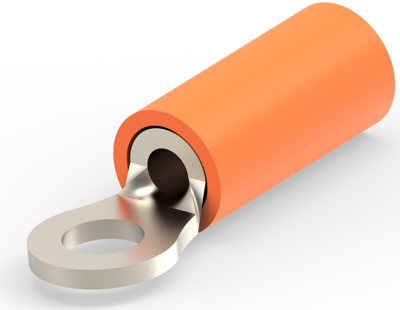

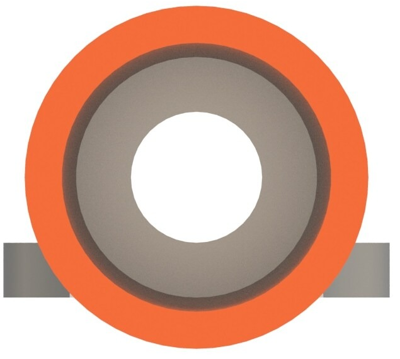

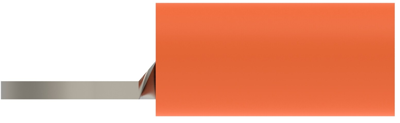

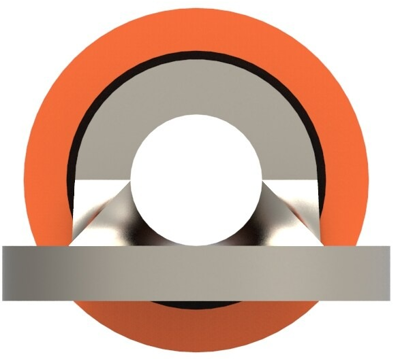

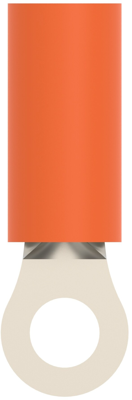

Insulated ring cable lug, 0.8-1.4 mm², AWG 18 to 16, 3.02 mm, M2.5, 50834
Order No.: 39P3178
EAN: 4099889591460
MPN:
50834
Unit Price (€ / pc.)
6.3189 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 50834, AMP
Shape Description: RING-052, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 1 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 18 – 16 AWG, Wire Size: .8 – 1.4 mm², Wire Size: 1600 – 2800 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .84 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 288 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 18 to 16 | |
| Thread size | M2.5 | |
| Material Insulation | PTFE | |
| Isolated | Yes | |
| Cable cross-section | 0.8-1.4 mm² | |
| Hole diameter | 3.02 mm | |
| Material | copper, nickel-plated | |
| max. operating temperature | 288 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
