52041-9 | AMP

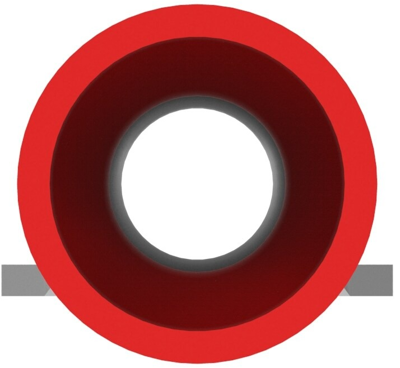

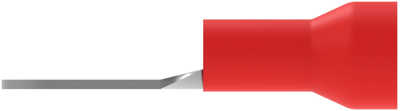

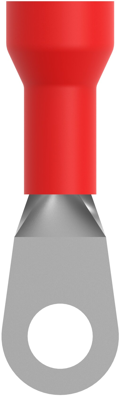

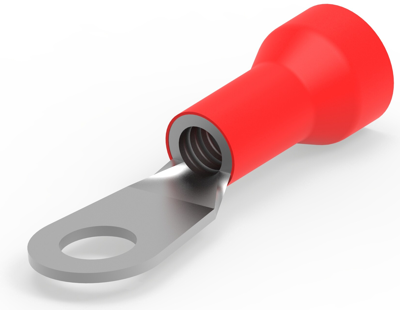

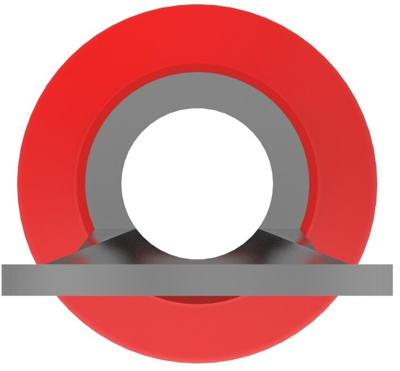

Insulated ring cable lug, 8.0 mm², AWG 8, 6.73 mm, M6, red, 52041-9
Unit Price (€ / pc.)
1.7017 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Cable lug, 52041-9, AMP
Shape Description: RING-044, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 8 | |
| Farbe | rot | |
| Gewindegröße | M6 | |
| Isolationsmaterial | Vinyl | |
| Isoliert | Yes | |
| Leiterquerschnitt | 8,0 mm² | |
| Lochdurchmesser | 6.73 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
