52273 | AMP
Insulated ring cable lug, 0.3-0.4 mm², AWG 22, 2.84 mm, M2.5, red, 52273
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Leadtime: On Request **

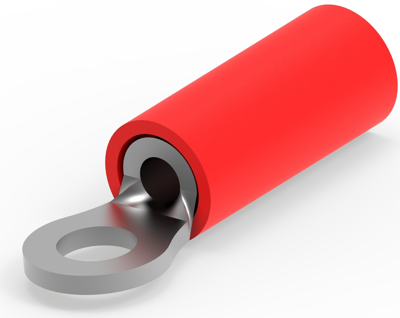

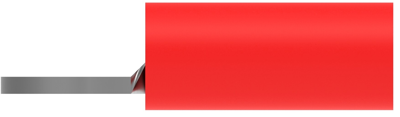

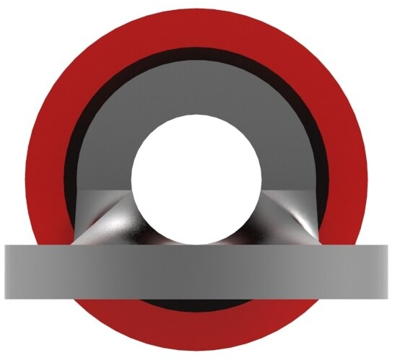

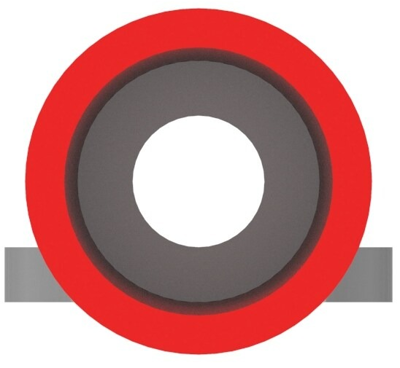

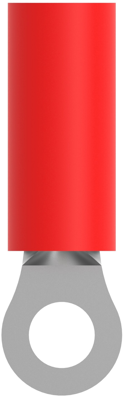

Ring cable lug, 52273, AMP
Shape Description: RING-042, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: 0.3 -0.4 mm², Wire Size: 754 CMA, Stud Diameter: 2.84 mm, Tongue Thickness: 0.84 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 | |
| Colour | red | |
| Thread size | M2.5 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.3-0.4 mm² | |
| Hole diameter | 2.84 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
