52284-3 | AMP

Insulated ring cable lug, 0.5-0.6 mm², AWG 20, 4.82 mm, red, 52284-3

Order No.: 71P9750
EAN: 4099891604509
MPN:
52284-3
Series: PIDG
AMP

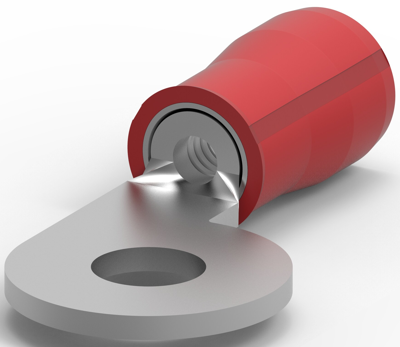

52284-3 AMP Cable Lugs Image 1

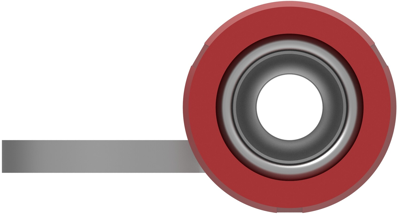

52284-3 AMP Cable Lugs Image 2

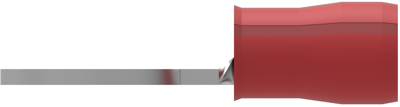

52284-3 AMP Cable Lugs Image 3

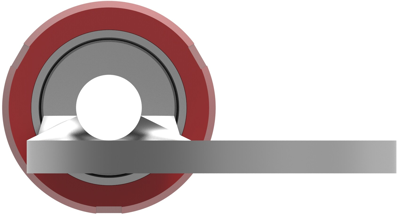

52284-3 AMP Cable Lugs Image 4

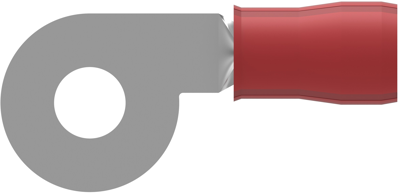

52284-3 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Available in 5 Days: 1,017 pcs.
Leadtime: 33 Weeks **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
62 pcs.
1.4399 €
300 pcs.
1.3447 €
*incl. VAT plus shipping costs
**Subject to prior sale

Ring cable lug, 52284-3, AMP

Ring terminal, Ring tongue, 20 AWG Wire size, 0.5-.6 mm² Wire size, 1186 CMA Wire size, Stud size #10.

Technical specifications
Version ring cable lug
AWG cross-section AWG 20
Colour red
Material Insulation PA
Isolated Yes
Cable cross-section 0.5-0.6 mm²
Hole diameter 4.82 mm
Material copper, tin-plated
max. operating temperature 105 °C
shrinkable tubing Yes
Logistics
Country of origin US
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
