52403 | AMP

Insulated forked cable lug, 0.12-0.4 mm², AWG 26 to 22, 3.51 mm, M3.5, yellow, 52403

Order No.: 71P9776
EAN: 4099891604530
MPN:
52403
Series: PIDG

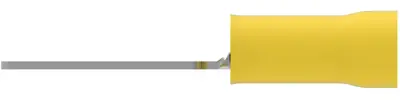

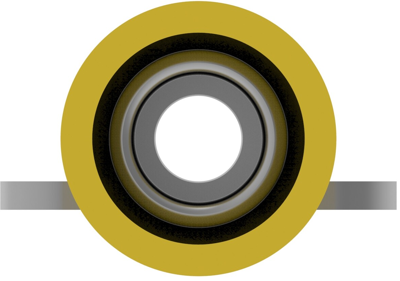

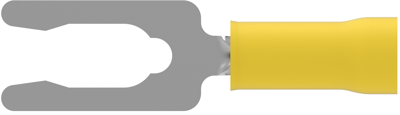

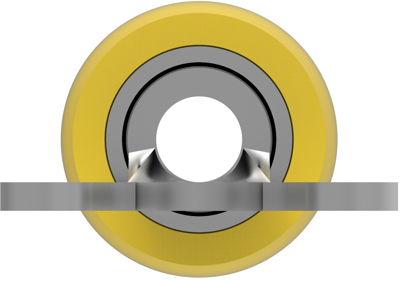

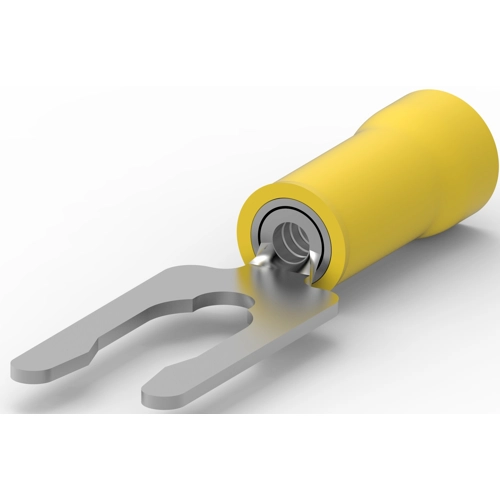

52403 AMP Cable Lugs Image 1
52403 AMP Cable Lugs Image 2
52403 AMP Cable Lugs Image 3
52403 AMP Cable Lugs Image 4
52403 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Available in 5 Days: 26,000 pcs.
Leadtime: 55 Weeks **
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.5827 €
50 pcs.
1.4161 €
100 pcs.
1.2733 €
*incl. VAT plus shipping costs
**Subject to prior sale

Spring cable lug, 52403, AMP

Ring terminal & Spade terminal, Spring spade, 26-22 AWG Wire size, 0.12-0.4 mm² Wire size, 202-810 CMA Wire size, Stud size #6/M3.5.

Technical specifications
Version Gabelkabelschuh
AWG cross-section AWG 26 bis 22
Colour gelb
Thread size M3,5
Material Insulation PA
Isolated Yes
Cable cross-section 0,12-0,4 mm²
Hole diameter 3.51 mm
Material Phosphorbronze, verzinnt
max. operating temperature 105 °C
shrinkable tubing Yes
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
