52409-2 | AMP

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.51 mm, M3.5, red, 52409-2

Order No.: 71P9777
EAN: 4099891604547
MPN:
52409-2
Series: PIDG
AMP

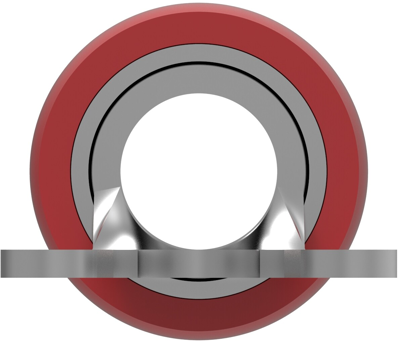

52409-2 AMP Cable Lugs Image 1

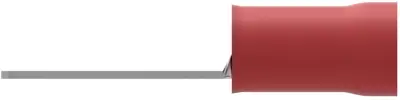

52409-2 AMP Cable Lugs Image 2

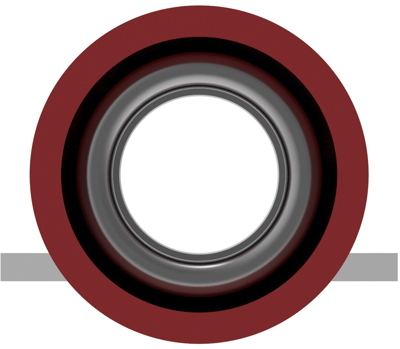

52409-2 AMP Cable Lugs Image 3

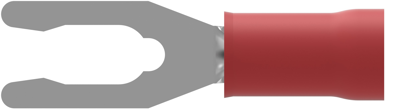

52409-2 AMP Cable Lugs Image 4

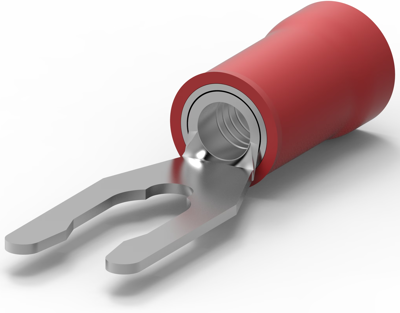

52409-2 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available: 0 pcs.
Available in 5 Days: 2,438 pcs.
Leadtime: 39 Weeks **
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
200 pcs.
0.4879 €
850 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale

Spring cable lug, 52409-2, AMP

Ring terminal & Spade terminal, Spring Spade, 22-16 AWG Wire size, 0.3-1.42 mm² Wire size, 509-3260 CMA Wire size, Stud size #6/M3.5.

Technical specifications
Version forked cable lug
AWG cross-section AWG 22 to 16
Colour red
Thread size M3.5
Material Insulation PA
Isolated Yes
Cable cross-section 0.3-1.42 mm²
Hole diameter 3.51 mm
Material phosphor bronze, tin-plated
max. operating temperature 105 °C
shrinkable tubing Yes
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
