52432-1 | AMP

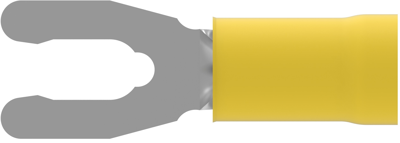

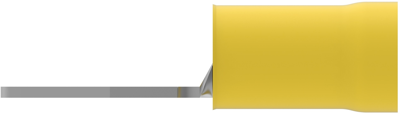

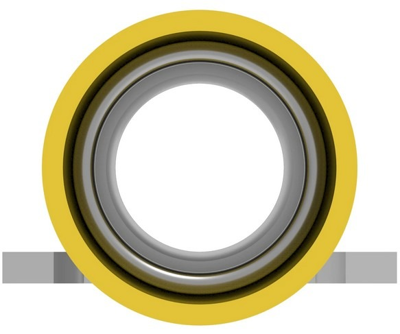

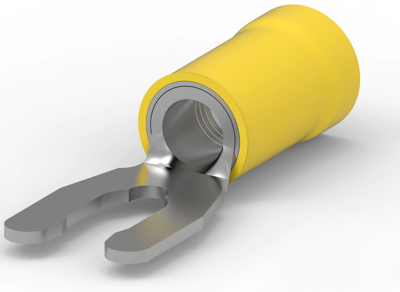

Insulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, yellow, 52432-1
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Available in 5 Days: 730 pcs.
Leadtime: 43 Weeks **
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
55 pcs.
1.6422 €
350 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 52432-1, AMP
Shape Description: SPADE-031, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Yellow, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 4.82 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 3.0-6.0 mm² | |
| Material | phosphor bronze, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
