52734-1 | AMP

Uninsulated forked cable lug, 0.12-0.4 mm², AWG 26 to 22, 3.51 mm, M3.5, 52734-1

Order No.: 71P9785
EAN: 4099891604608
MPN:
52734-1
Series: SOLISTRAND
AMP

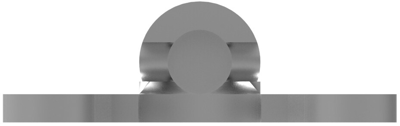

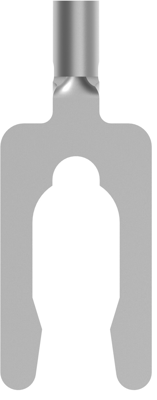

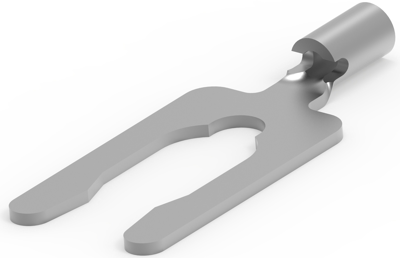

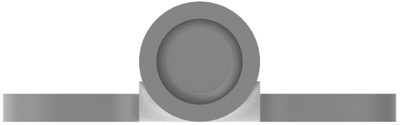

52734-1 AMP Cable Lugs Image 1
52734-1 AMP Cable Lugs Image 2
52734-1 AMP Cable Lugs Image 3
52734-1 AMP Cable Lugs Image 4
52734-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Available in 5 Days: 9,818 pcs.
Leadtime: 13 Weeks **
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3451 €
1300 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale

Forked cable lug, 52734-1, AMP

Ring terminal and Spade terminal, Spring spade, 26-22 AWG wire size, 0.12-0.4 mm² wire size, 202-810 CMA wire size.

Technical specifications
Version forked cable lug
AWG cross-section AWG 26 to 22
Thread size M3.5
Isolated No
Cable cross-section 0.12-0.4 mm²
Hole diameter 3.51 mm
Material phosphor bronze, tin-plated
max. operating temperature 170 °C
shrinkable tubing No
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
