52924 | AMP

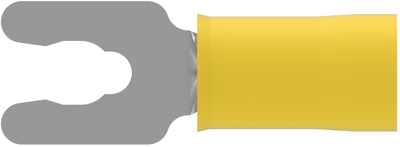

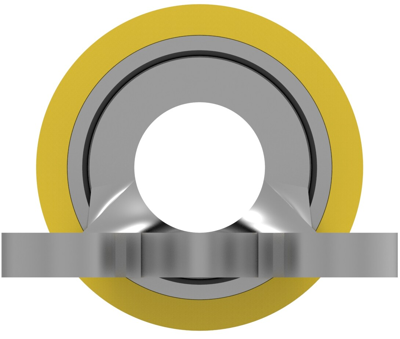

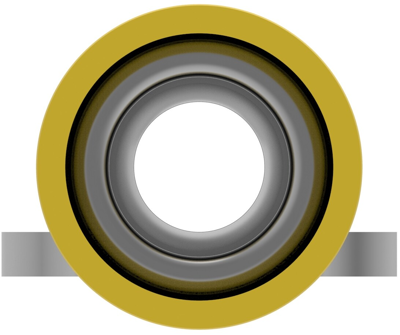

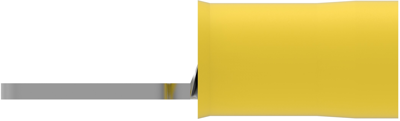

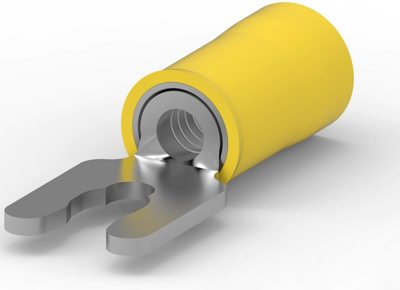

Insulated forked cable lug, 0.12-0.4 mm², AWG 26 to 22, M3.5, yellow, 52924
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Available in 5 Days: 154,553 pcs.
Leadtime: 40 Weeks **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
200 pcs.
0.6545 €
1600 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 52924, AMP
Shape Description: SPADE-028, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Yellow, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 3.51 mm, Tongue Thickness: .5 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 26 to 22 | |
| Colour | yellow | |
| Thread size | M3.5 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.12-0.4 mm² | |
| Material | phosphor bronze, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
