52935-1 | AMP
Insulated forked cable lug, 1.25-2.0 mm², AWG 16 to 14, 3.56 mm, M3.5, blue, 52935-1
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Leadtime: 43 Weeks **

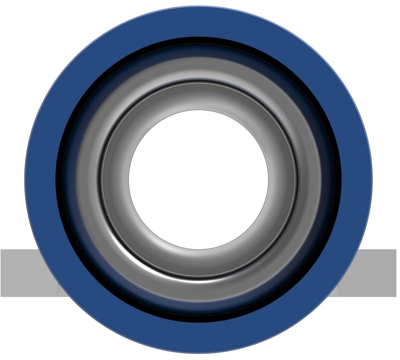

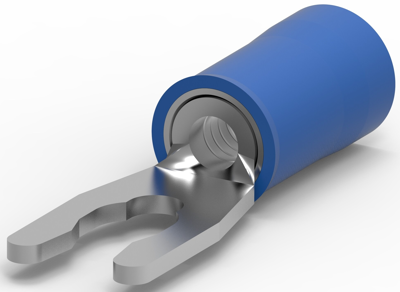

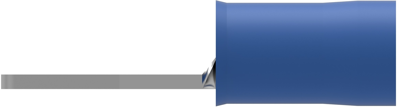

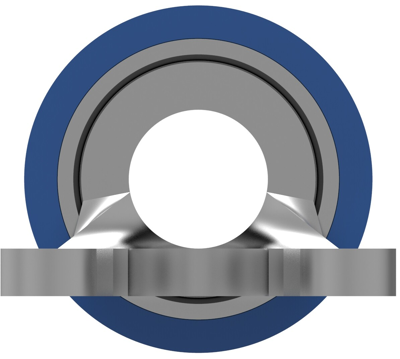

Fork cable lug, 52935-1, AMP
Shape Description: SPADE-028, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Blue, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.56 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Ausführung | Gabelkabelschuh | |
| AWG-Leiterquerschnitt | AWG 16 bis 14 | |
| Farbe | blau | |
| Gewindegröße | M3,5 | |
| Isolationsmaterial | PA | |
| Isoliert | Yes | |
| Leiterquerschnitt | 1,25-2,0 mm² | |
| Lochdurchmesser | 3.56 mm | |
| Material | Phosphorbronze, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
