52939 | AMP

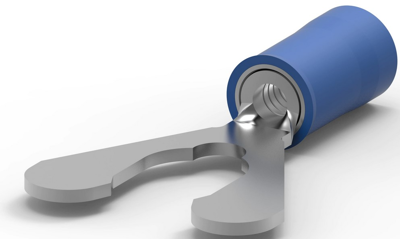

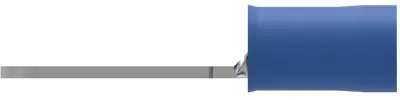

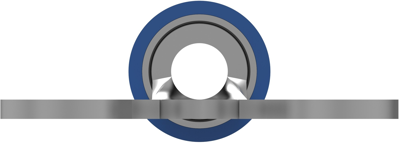

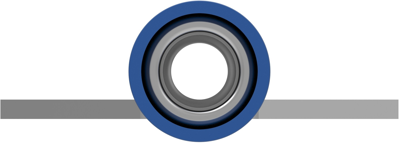

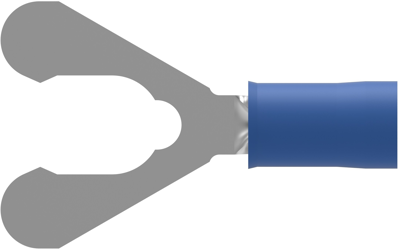

Insulated forked cable lug, 1.25-2.0 mm², AWG 16 to 14, M6, blue, 52939
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3558 €
10 pcs.
3.0583 €
50 pcs.
2.7608 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 52939, AMP
Shape Description: SPADE-028, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Blue, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | blue | |
| Thread size | M6 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | phosphor bronze, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
