52947 | AMP

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, 2.84 mm, M2.5, red, 52947

Order No.: 71P9794
EAN: 4099891604622
MPN:
52947
Series: PLASTI-GRIP
AMP

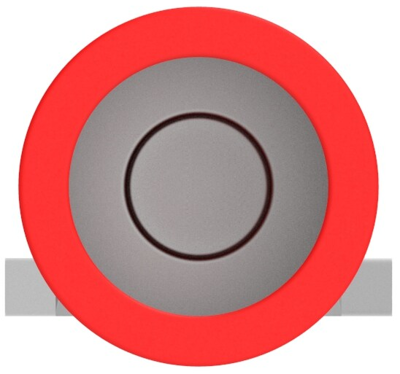

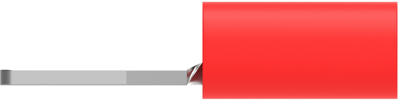

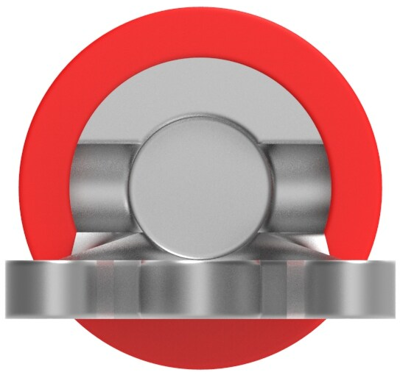

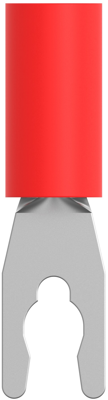

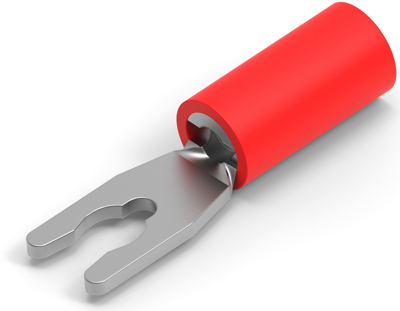

52947 AMP Cable Lugs Image 1
52947 AMP Cable Lugs Image 2
52947 AMP Cable Lugs Image 3
52947 AMP Cable Lugs Image 4
52947 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Available in 5 Days: 20,742 pcs.
Leadtime: 43 Weeks **
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3213 €
1400 pcs.
0.3094 €
*incl. VAT plus shipping costs
**Subject to prior sale

Spring cable lug, 52947, AMP

Ring terminal & Spade terminal, Spring spade, 22-16 AWG Wire size, 0.3-1.42 mm² Wire size, 509-3260 CMA Wire size.

Technical specifications
Version forked cable lug
AWG cross-section AWG 22 to 16
Colour red
Thread size M2.5
Material Insulation PVC
Isolated Yes
Cable cross-section 0.3-1.42 mm²
Hole diameter 2.84 mm
Material brass, tin-plated
max. operating temperature 105 °C
shrinkable tubing Yes
Logistics
Country of origin US
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
