53125-1 | AMP
Uninsulated forked cable lug, 1.25-2.0 mm², AWG 16 to 14, 53125-1
Order No.: 39P8759
EAN: 4099889603798
MPN:
53125-1
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Leadtime: On Request **

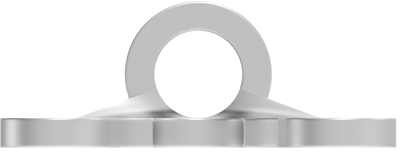

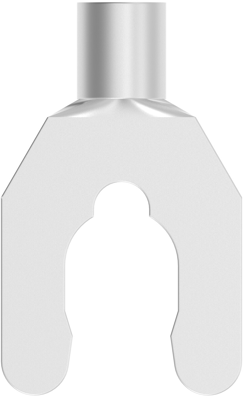

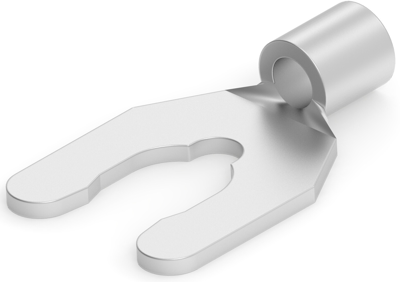

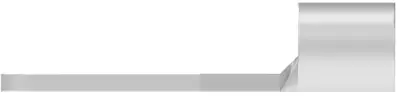

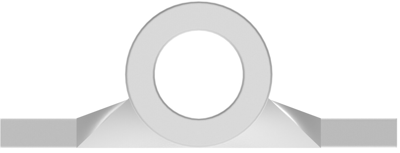

Fork cable lug, 53125-1, AMP
Shape Description: SPADE-030, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.82 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Isolated | No | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | tin | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
