53240-2 | AMP

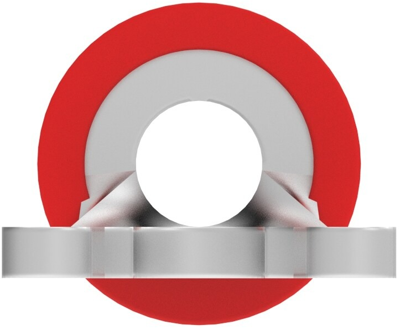

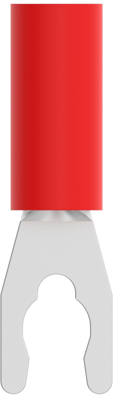

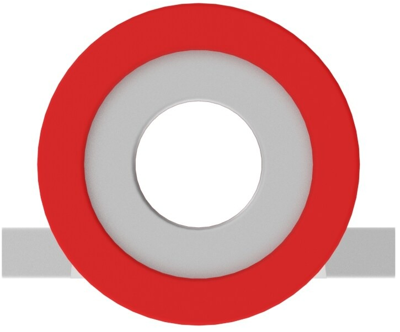

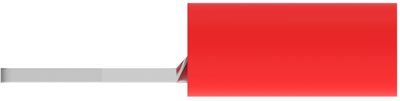

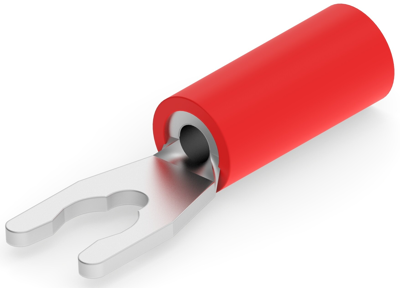

Insulated forked cable lug, 0.3-1.42 mm², AWG 22, M3.5, red, 53240-2
Unit Price (€ / pc.)
0.2713 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
4,069.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
0.2713 €
Fork cable lug, 53240-2, AMP
Shape Description: SPADE-029, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 1000 V,600 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.56 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape & Reel
Technical specifications
| Ausführung | Gabelkabelschuh | |
| AWG-Leiterquerschnitt | AWG 22 | |
| Farbe | rot | |
| Gewindegröße | M3,5 | |
| Isolationsmaterial | PVC | |
| Isoliert | Yes | |
| Leiterquerschnitt | 0,3-1,42 mm² | |
| Material | Zinn | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
