53555-1 | AMP
Uninsulated forked cable lug, 0.3-1.42 mm², AWG 22, M2, metal, 53555-1
Order No.: 39P8616
EAN: 4099889602494
MPN:
53555-1
Unit Price (€ / pc.)
0.2642 € *
Available: 0 pcs.
Leadtime: On Request **

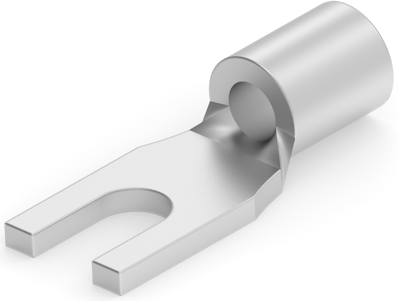

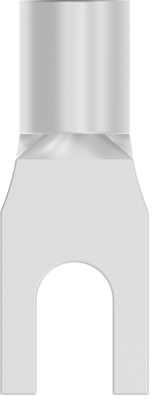

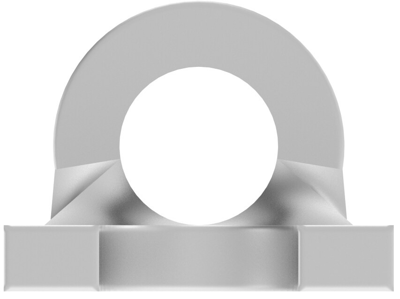

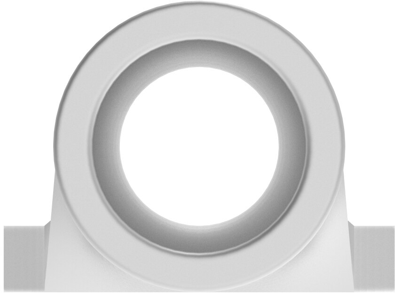

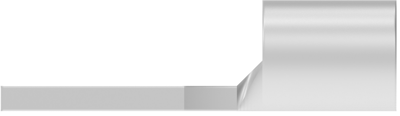

Fork cable lug, 53555-1, AMP
Shape Description: SPADE-023, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 2.36 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 22 | |
| Colour | metal | |
| Thread size | M2 | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | tin | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
