54754-1 | AMP

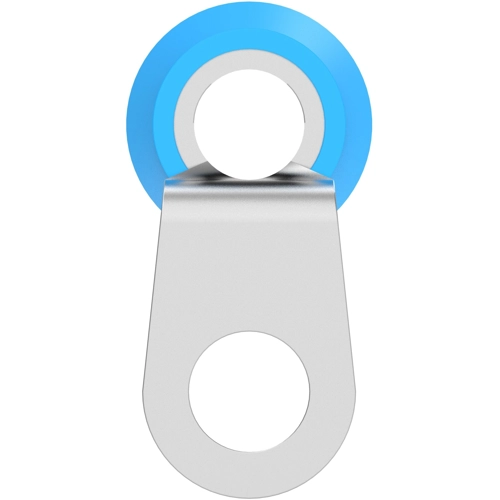

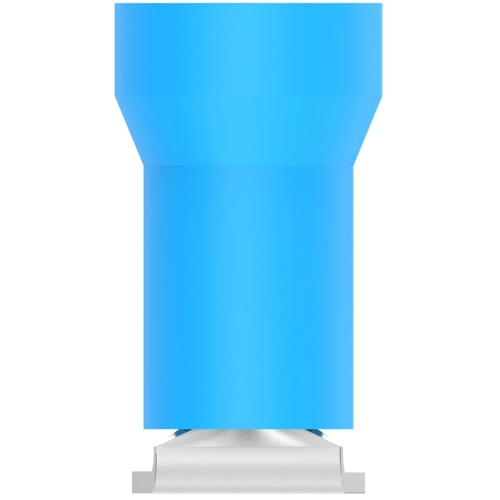

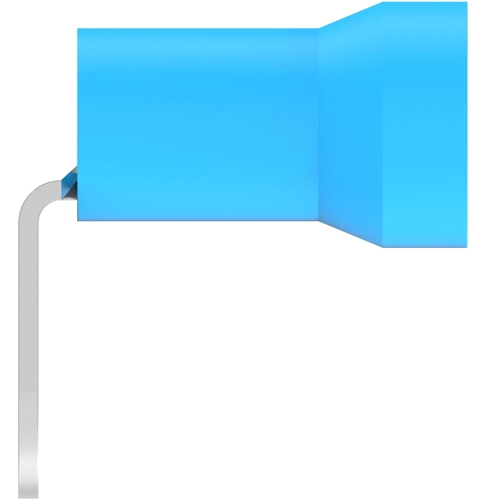

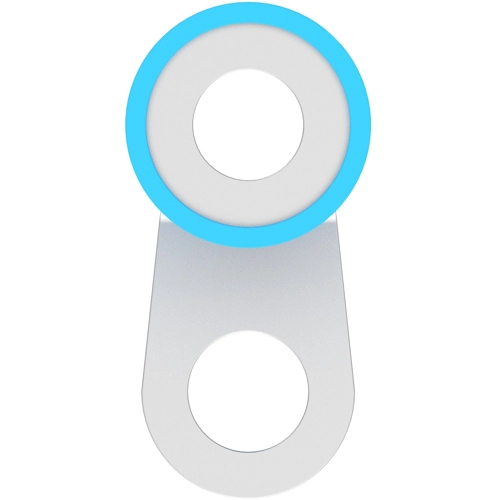

Insulated ring cable lug, 10.54-16.77 mm², AWG 6, 6.73 mm, M6, blue, 54754-1
Unit Price (€ / pc.)
2.7132 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: 43 Weeks **
Total Price:
2.71 € *
Price list
Quantity
Price per unit*
33 pcs.
2.7132 €
1000 pcs.
2.1420 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 54754-1, AMP
Shape Description: RING-046, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: 90°, Voltage (Max): 600 V, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 6 AWG, Wire Size: 10.54 – 16.77 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 1.14 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 6 | |
| Colour | blue | |
| Thread size | M6 | |
| Material Insulation | PVC | |
| Isolated | Yes | |
| Cable cross-section | 10.54-16.77 mm² | |
| Hole diameter | 6.73 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
