55847-1 | AMP

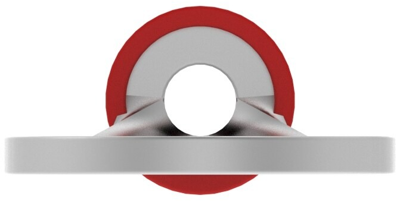

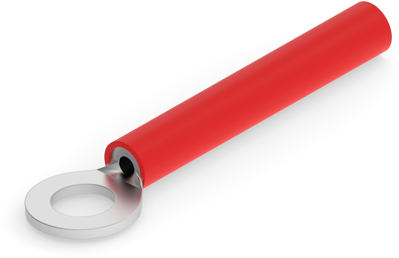

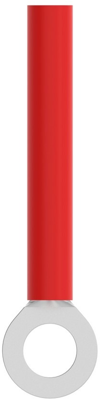

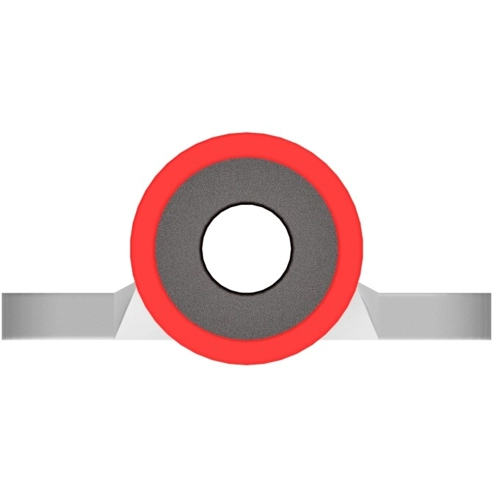

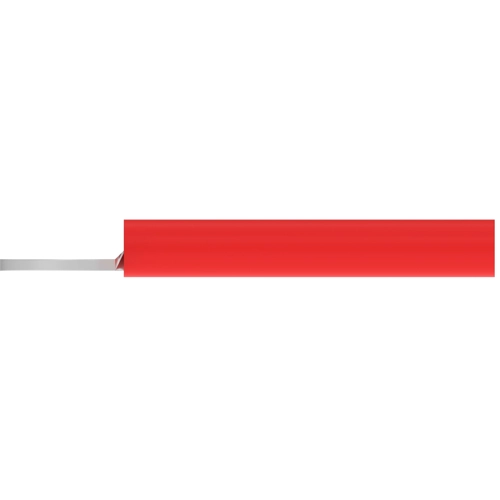

Insulated ring cable lug, 0.26-0.96 mm², AWG 22 to 18, 4 mm, M4, red, 55847-1
Order No.: 39P3125
EAN: 4099889591118
MPN:
55847-1
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 55847-1, AMP
Shape Description: RING-088, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: Yes, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 1000 V,600 V, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 18 AWG, Wire Size: .26 – .96 mm², Wire Size: 509 – 1900 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .81 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 125 °C, Heavy Duty: Yes, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 18 | |
| Colour | red | |
| Thread size | M4 | |
| Material Insulation | PO | |
| Isolated | Yes | |
| Cable cross-section | 0.26-0.96 mm² | |
| Hole diameter | 4 mm | |
| Material | tin | |
| max. operating temperature | 125 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
