60445-2 | AMP
Uninsulated forked cable lug, 0.2-0.6 mm², AWG 24 to 20, M3.5, metal, 60445-2
Order No.: 35P2507
EAN: 4099889590548
MPN:
60445-2
Unit Price (€ / pc.)
0.1047 € *
Available: 0 pcs.
Leadtime: On Request **

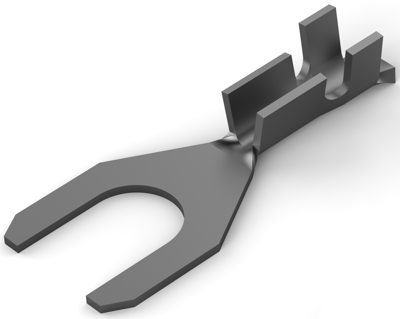

Fork cable lug, 60445-2, AMP
Shape Description: Square Spade, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 24 – 20 AWG, Wire Size: 0.2 -0.6 mm², Wire Size: 404 – 1021 CMA, Stud Diameter: 3.51 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 25000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 24 to 20 | |
| Colour | metal | |
| Thread size | M3.5 | |
| Isolated | No | |
| Cable cross-section | 0.2-0.6 mm² | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
