60700-3 | AMP

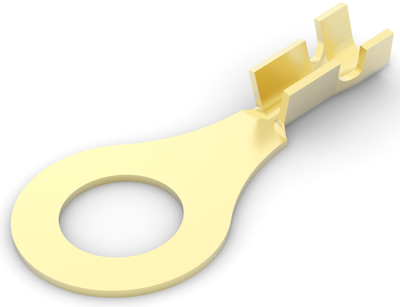

Uninsulated ring cable lug, 0.5-1.4 mm², AWG 20 to 16, 3.51 mm, M6, metal, 60700-3
Order No.: 35P2354
EAN: 4099889589542
MPN:
60700-3
Unit Price (€ / pc.)
0.1618 € *
Available: 0 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 21 Weeks **
Cable lug, 60700-3, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Unplated, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 20 – 16 AWG, Wire Size: .5 – 1.4 mm², Wire Size: 1021 – 2582 CMA, Stud Diameter: 3.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 10000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 20 to 16 | |
| Colour | metal | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 0.5-1.4 mm² | |
| Hole diameter | 3.51 mm | |
| Material | brass | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
