61289-1 | AMP

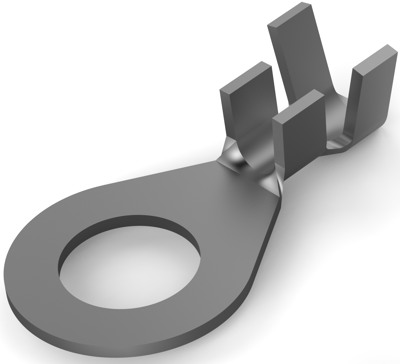

Uninsulated ring cable lug, 3.31-8.37 mm², AWG 12 to 8, 9.91 mm, metal, 61289-1
Order No.: 35P2317
EAN: 4099889589207
MPN:
61289-1
Unit Price (€ / pc.)
0.4998 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 12 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.4998 €
4000 pcs.
0.4760 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 61289-1, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 12 – 8 AWG, Wire Size: 3.31 – 8.37 mm², Wire Size: 6529 – 16507 CMA, Stud Diameter: 9.91 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 8 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 3.31-8.37 mm² | |
| Hole diameter | 9.91 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
