61498-2 | AMP

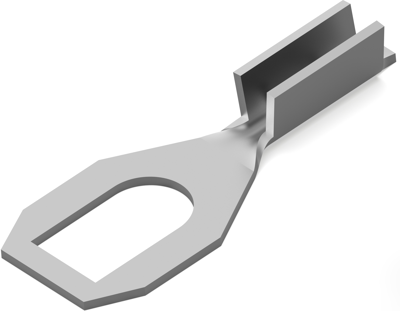

Uninsulated forked cable lug, 0.08-0.4 mm², AWG 28 to 22, 3.18 mm, M3, metal, 61498-2
Order No.: 35P2494
EAN: 4099889590449
MPN:
61498-2
Unit Price (€ / pc.)
0.0738 € *
Available: 0 pcs.
Leadtime: On Request **
Fork cable lug, 61498-2, AMP
Shape Description: Square Spade, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 28 – 22 AWG, Wire Size: 0.08 -0.4 mm², Wire Size: 160 – 642 CMA, Stud Diameter: 3.18 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 28000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 28 to 22 | |
| Colour | metal | |
| Thread size | M3 | |
| Isolated | No | |
| Cable cross-section | 0.08-0.4 mm² | |
| Hole diameter | 3.18 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
