61546-1 | AMP

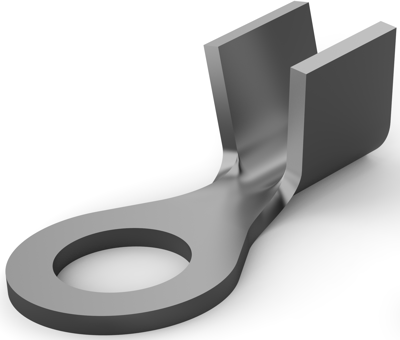

Uninsulated ring cable lug, 5.26-13.3 mm², AWG 10 to 6, 8.33 mm, M8, metal, 61546-1
Order No.: 35P2425
EAN: 4099889590050
MPN:
61546-1
Unit Price (€ / pc.)
0.4284 € *
Available: 0 pcs.
Available in 5 Days: 6,400 pcs.
Leadtime: 45 Weeks **
Cable lug, 61546-1, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: Without, Wire Size: 10 – 6 AWG, Wire Size: 5.26 – 13.3 mm², Wire Size: 10382 – 26248 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: 1.27 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1600, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 10 to 6 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 5.26-13.3 mm² | |
| Hole diameter | 8.33 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
