61855-1 | AMP

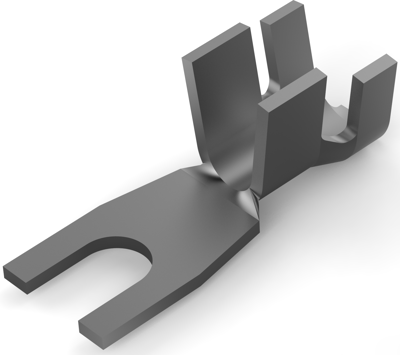

Uninsulated forked cable lug, 5.0-15 mm², AWG 10 to 6, 4.82 mm, 61855-1
Order No.: 35P2495
EAN: 4099889590456
MPN:
61855-1
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8449 €
50 pcs.
0.7616 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 61855-1, AMP
Shape Description: Square Spade, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 10 – 6 AWG, Wire Size: 5 – 15 mm², Wire Size: 10382 – 26248 CMA, Stud Diameter: 4.82 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1200, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 10 to 6 | |
| Isolated | No | |
| Cable cross-section | 5.0-15 mm² | |
| Hole diameter | 4.82 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
