626034-2 | AMP

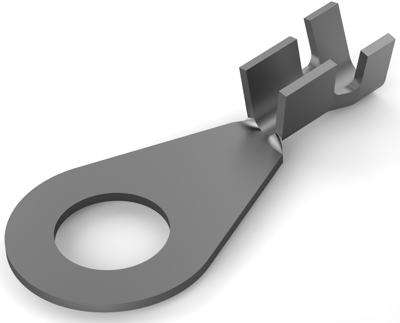

Uninsulated ring cable lug, 1.0-2.5 mm², AWG 17 to 13, 6.5 mm, 626034-2
Order No.: 35P2455
EAN: 4099889590197
MPN:
626034-2
Unit Price (€ / pc.)
0.2011 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 626034-2, AMP
Shape Description: RING-001, Ring & Spade Stud Size: 1/4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .956 g, Ring & Spade Plating Material: Brass,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 17 – 13 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 2048 – 5178 CMA, Stud Diameter: 6.5 mm, Tongue Thickness: .6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Strip/Reel, Comment: Similar to DIN 46225.
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 17 to 13 | |
| Isolated | No | |
| Cable cross-section | 1.0-2.5 mm² | |
| Hole diameter | 6.5 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
