626035-2 | AMP

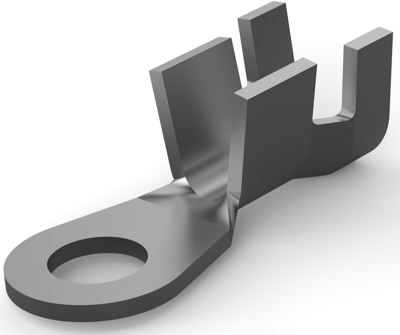

Uninsulated ring cable lug, 4.0-6.0 mm², AWG 11 to 10, 4.3 mm, M4, metal, 626035-2
Order No.: 35P2463
EAN: 4099889590258
MPN:
626035-2
Unit Price (€ / pc.)
0.2130 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
2,130.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.2130 €
Cable lug, 626035-2, AMP
Shape Description: RING-001, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.205 g, Ring & Spade Plating Material: Brass,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 11 – 10 AWG, Wire Size: 4 – 6 mm², Wire Size: 8233 – 10382 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: .8 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Strip/Reel, Comment: Similar to DIN 46225.
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 11 bis 10 | |
| Colour | metall | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 4,0-6,0 mm² | |
| Hole diameter | 4.3 mm | |
| Material | Messing, verzinnt | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
