62613-2 | AMP

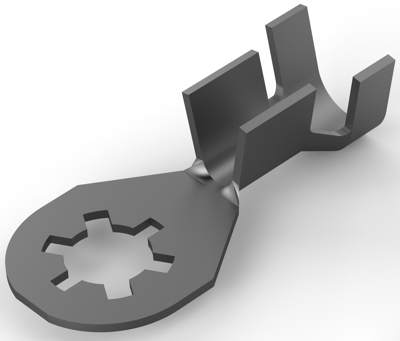

Uninsulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 4.82 mm, metal, 62613-2
Order No.: 35P2400
EAN: 4099889589863
MPN:
62613-2
Unit Price (€ / pc.)
0.1702 € *
Available: 0 pcs.
Available in 5 Days: 55,800 pcs.
Leadtime: 28 Weeks **
Total Price:
0.17 € *
Price list
Quantity
Price per unit*
1800 pcs.
0.1702 €
3600 pcs.
0.1440 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 62613-2, AMP
Shape Description: Anti-Rotational/Grounding, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Steel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 6529 – 10382 CMA, Stud Diameter: 4.82 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1800, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 3.0-6.0 mm² | |
| Hole diameter | 4.82 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
