626416-2 | AMP
Uninsulated ring cable lug, 0.5-1.65 mm², AWG 20 to 15, 8.3 mm, M8, metal, 626416-2
Order No.: 35P2453
EAN: 4099889590180
MPN:
626416-2
Unit Price (€ / pc.)
0.3011 € *
Available: 0 pcs.
Leadtime: On Request **

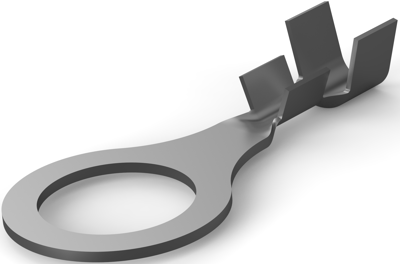

Cable lug, 626416-2, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: .923 g, Ring & Spade Plating Material: Brass,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 20 – 15 AWG, Wire Size: .5 – 1.65 mm², Wire Size: 1021 – 3256 CMA, Stud Diameter: 8.3 mm, Tongue Thickness: .6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 10000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 20 to 15 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 0.5-1.65 mm² | |
| Hole diameter | 8.3 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
