640253-2 | AMP

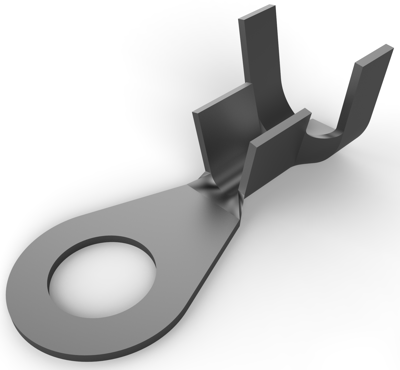

Uninsulated ring cable lug, 1.25-3.0 mm², AWG 16 to 12, 5 mm, metal, 640253-2
Order No.: 35P2451
EAN: 4099889590173
MPN:
640253-2
Unit Price (€ / pc.)
0.1083 € *
Available: 0 pcs.
Available in 5 Days: 16,000 pcs.
Leadtime: 22 Weeks **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
8000 pcs.
0.1083 €
16000 pcs.
0.0881 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 640253-2, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.571 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 16 – 12 AWG, Wire Size: 1.25 – 3 mm², Wire Size: 2582 – 6529 CMA, Stud Diameter: 5 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 8000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 12 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 1.25-3.0 mm² | |
| Hole diameter | 5 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
| Original Packaging | Reel with 8,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
