696424-6 | AMP

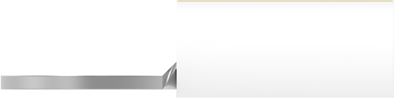

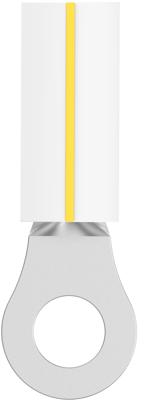

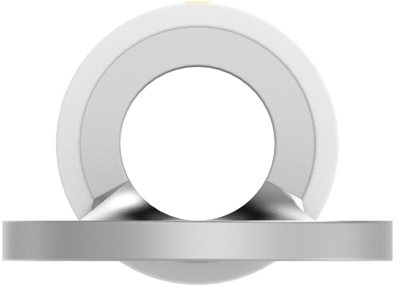

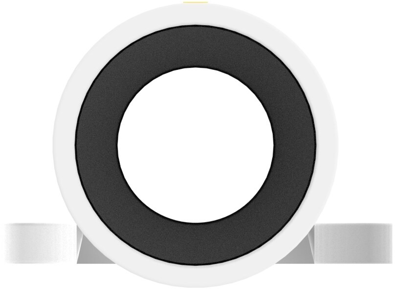

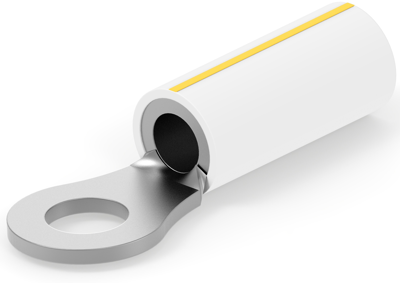

Name: Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 5 mm, 696424-6
Brand: AMP
SKU: 39P3809
Price: 1.00 EUR
Availability: OutOfStock

Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 5 mm, 696424-6

Order No.: 39P3809

EAN: 4099889596175

MPN:

696424-6

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 2.62-6.64 mm²

AWG cross-section AWG 12 to 10

Isolated Yes

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.9996 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

1.00 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Ring tongue terminal, 696424-6, AMP

Ring tongue terminal, Wire size: 12 - 10 AWG, Wire size: 2.62 - 6.64 mm², Wire size: 6654 - 12066 CMA, Stud size: 10, Body style: PIDG

Technical specifications

	Version	ring cable lug
	AWG cross-section	AWG 12 to 10
	Material Insulation	PVDF
	Isolated	Yes
	Cable cross-section	2.62-6.64 mm²
	Hole diameter	5 mm
	Material	copper, tin-plated
	max. operating temperature	150 °C
