8-31897-1 | AMP

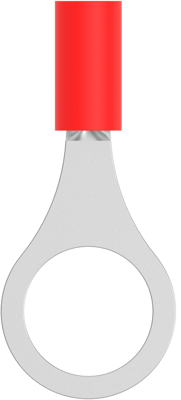

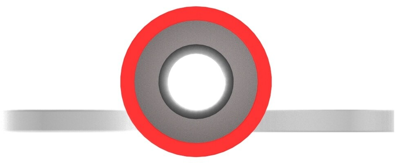

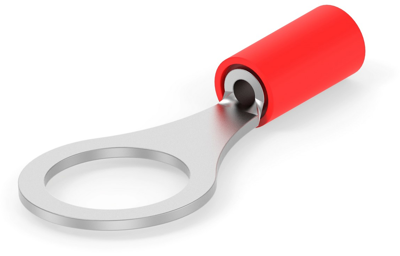

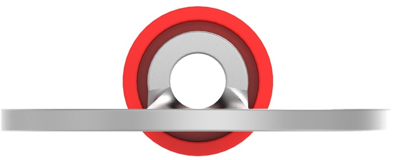

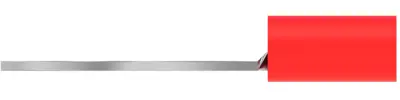

Insulated ring cable lug, 0.3-1.42 mm², AWG 22, 9.53 mm, red, 8-31897-1
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Available in 5 Days: 500 pcs.
Leadtime: 39 Weeks **
Cable lug, 8-31897-1, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 9.53 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 22 | |
| Farbe | rot | |
| Isolationsmaterial | PA | |
| Isoliert | Yes | |
| Leiterquerschnitt | 0,3-1,42 mm² | |
| Lochdurchmesser | 9.53 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85369040 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
