880642-2 | AMP

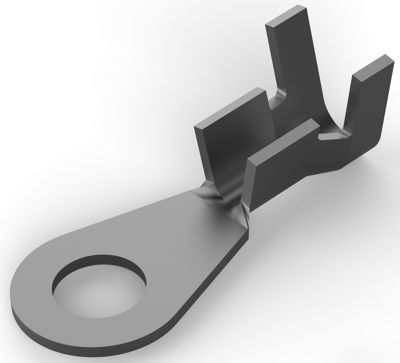

Uninsulated ring cable lug, 1.0-2.5 mm², AWG 17 to 13, 4.3 mm, M4, metal, 880642-2
Order No.: 35P2457
EAN: 4099889590210
MPN:
880642-2
Unit Price (€ / pc.)
0.1166 € *
Available: 0 pcs.
Available in 5 Days: 25,000 pcs.
Leadtime: 24 Weeks **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.1166 €
10000 pcs.
0.1071 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 880642-2, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: .678 g, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 17 – 13 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 2048 – 5178 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: .6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape & Reel, Comment: Similar to DIN 46225
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 17 to 13 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 1.0-2.5 mm² | |
| Hole diameter | 4.3 mm | |
| Material | tin | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
