880643-2 | AMP

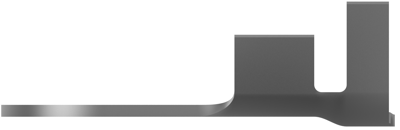

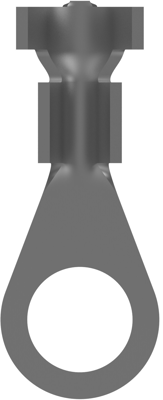

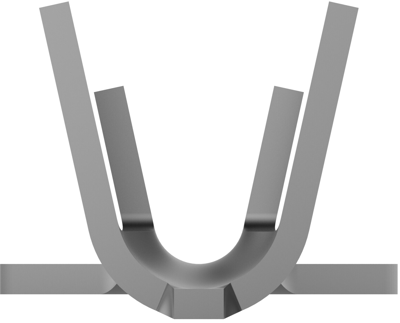

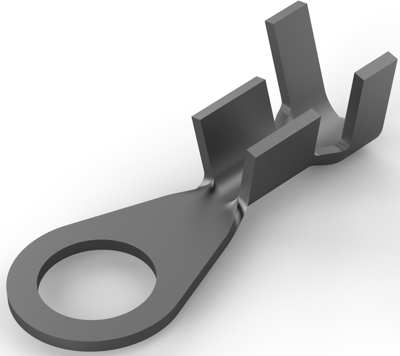

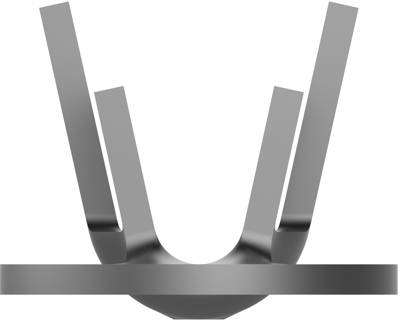

Name: Uninsulated ring cable lug, 1-2.5 mm², AWG 17 to 13, 5.3 mm, 880643-2
Brand: AMP
SKU: 72P2057
Price: 0.20 EUR
Availability: OutOfStock

Uninsulated ring cable lug, 1-2.5 mm², AWG 17 to 13, 5.3 mm, 880643-2

Order No.: 72P2057

EAN: 4099891605544

MPN:

880643-2

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 1-2.5 mm²

AWG cross-section AWG 17 to 13

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2011 € *

Available: 0 pcs.

Available in 5 Days: 45,000 pcs.

Leadtime: 21 Weeks **

Add to Cart

Total Price:

0.20 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Ring cable lug, 880643-2, AMP

Ring terminal, Ring tongue, 17 - 13 AWG Wire size, 1 - 2.5 mm² Wire size, 2048 - 5178 CMA Wire size, Stud size #10.

Technical specifications

	Version	ring cable lug
	AWG cross-section	AWG 17 to 13
	Isolated	No
	Cable cross-section	1-2.5 mm²
	Hole diameter	5.3 mm
	Material	brass, tin-plated
	max. operating temperature	105 °C
	shrinkable tubing	No
