964197-1 | AMP

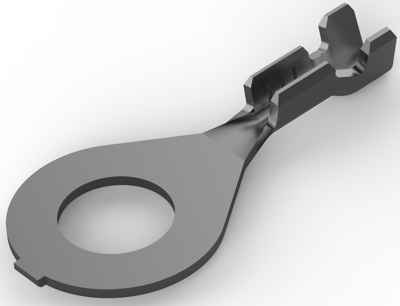

Uninsulated ring cable lug, 0.5-1.0 mm², AWG 20 to 17, 6.45 mm, metal, 964197-1
Order No.: 35P2302
EAN: 4099889589115
MPN:
964197-1
Unit Price (€ / pc.)
1.4637 € *
Available: 0 pcs.
Leadtime: On Request **
Rings and Spades, 964197-1, AMP
Ring & Spade Stud Size: 1/4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Ring & Spade Wire/Cable Type: Regular Wire, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 14 V, Ring & Spade Plating Material: Tin, Contact Base Material: CuSn4, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 20 – 17 AWG, Wire Size: 0.5 – 1 mm², Wire Size: 1021 – 2048 CMA, Stud Diameter: 6.45 mm, Tongue Thickness: 0.64 mm, Operating Temperature Range: -40 – 130 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2000, Ring & Spade Packaging Method: Box
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 20 to 17 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 0.5-1.0 mm² | |
| Hole diameter | 6.45 mm | |
| Material | copper alloy | |
| max. operating temperature | 130 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
