1-332070-4 | AMP

1-332070-4

Order No.: 36P9705
EAN: 4099889815566
MPN:
1-332070-4
AMP
1-332070-4 AMP Card Connectors

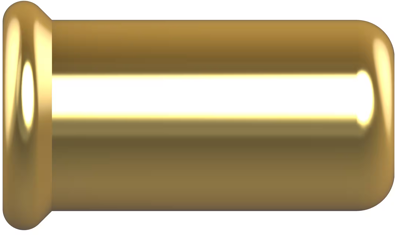

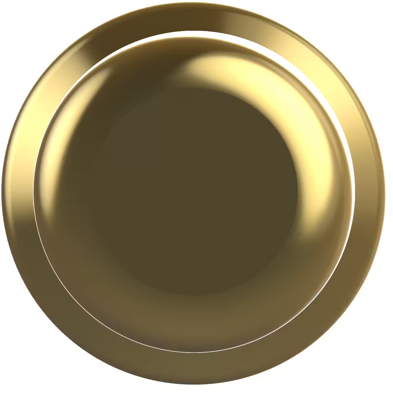

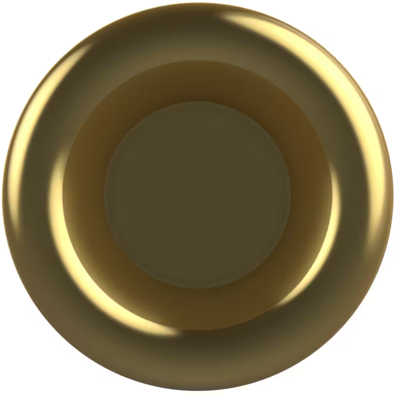

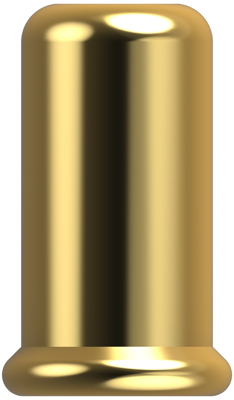

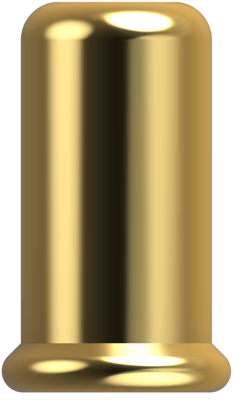

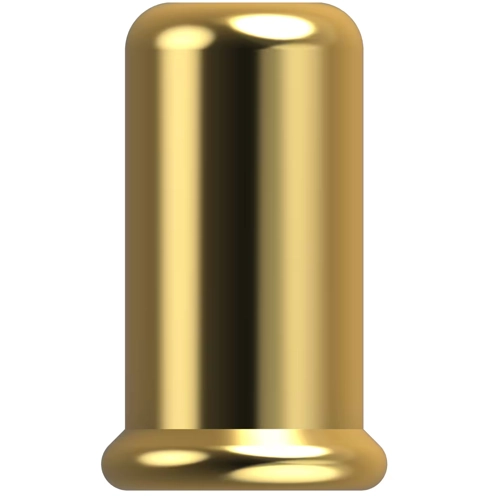

Image may differ
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1067 €
10 pcs.
0.9996 €
50 pcs.
0.8925 €
100 pcs.
0.8092 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pin Sockets, 1-332070-4, AMP

Socket Sleeve Style: Open Bottom, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Contact, Sleeve Material: Copper, Contact Base Material: Beryllium Copper, Contact Current Rating (Max): 7.5 A, Contact Type: Socket, Insertion Method: Hand/Semi-Automatic, Termination Method to Printed Circuit Board: Through Hole - Press-Fit, Termination Method to Wire & Cable: Solder, Socket Length: 3.63 mm, Hole Size (Recommended): 1.83 mm, Wire Size: 19 AWG, Wire Size: .653 mm², Mating Pin Diameter Range: .94 – 1.02 mm, Operating Temperature Range: -65 – 125 °C, Solder Process Feature: None, Circuit Application: Power & Signal, Packaging Method: Bag,Loose Piece, Spring Material: Beryllium Copper

Technical specifications
Ausführung Buchse
Polzahl 1-polig
Verriegelung gerade
Logistics
Ursprungsland TW
Zolltarifnummer 85369001
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
