390112-1 | AMP

390112-1

Order No.: 36P9168
EAN: 4099889815412
MPN:
390112-1

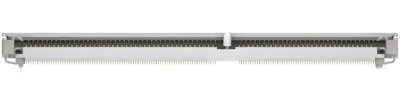

390112-1 AMP Card Connectors Image 1

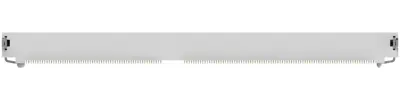

390112-1 AMP Card Connectors Image 2

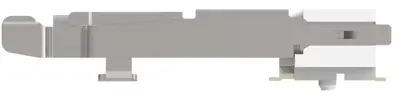

390112-1 AMP Card Connectors Image 3

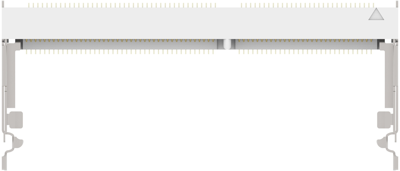

390112-1 AMP Card Connectors Image 4

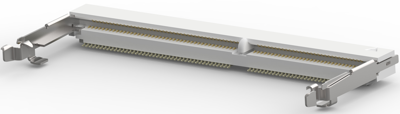

390112-1 AMP Card Connectors Image 5
Image may differ
Unit Price (€ / pc.)
10.7814 € *
Available: 0 pcs.
Available in 5 Days: 563 pcs.
Leadtime: 14 Weeks **
Total Price:
10.78 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7814 €
10 pcs.
9.9246 €
50 pcs.
8.9250 €
100 pcs.
8.0325 €
*incl. VAT plus shipping costs
**Subject to prior sale

SO DIMM Sockets, 390112-1, TE Connectivity

DRAM Type: Small Outline (SO), Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Socket, Center Key: Offset Left, Module Orientation: Right Angle, Number of Positions: 144, Number of Rows: 2, DRAM Voltage: 3.3 V, Module Key Type: SDRAM, Connector Profile: High, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material: Gold, Contact Mating Area Plating Material Thickness: 0.25 µm, Socket Type: Memory Card, Insertion Style: Cam-In, PCB Mount Retention Type: Hold-Down Post, PCB Mounting Style: Surface Mount, Connector Mounting Type: Board Mount, Centerline (Pitch): 0.8 mm, Housing Color: Natural, Stack Height: 5.6 mm, Row-to-Row Spacing: 6.2 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Soft Tray, Packaging Quantity: 20

Technical specifications
Connector SO DIMM
Version Buchse
Grid 0.8 mm
Pin number 144-polig
Number of rows 2
Type of locking gerade
Logistics
Country of origin TW
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
