5227699-2 | AMP

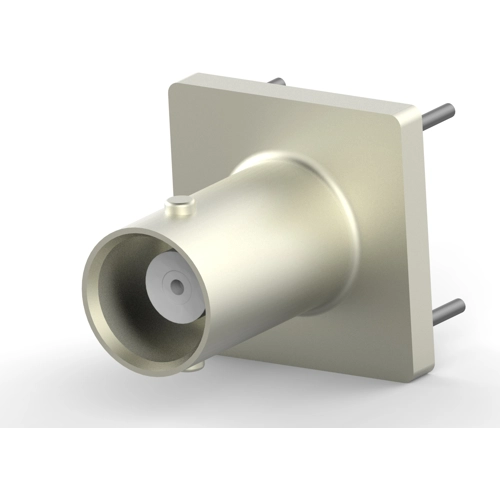

BNC socket 50 Ω, solder connection, straight, 5227699-2
Unit Price (€ / pc.)
8.8060 € *
Available: 0 pcs.
Available in 5 Days: 750 pcs.
Leadtime: 10 Weeks **
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
30 pcs.
8.8060 €
120 pcs.
7.0567 €
*incl. VAT plus shipping costs
**Subject to prior sale
RF Coaxial connector, 5227699-2, AMP
The 5227699-2 is a BNC connector, 50 Ohm with bayonet locking coupling and provides highly reliable, quick connect/disconnect coaxial connections. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. This connector is designed around the mil-specifications, but utilize low-cost materials, offering comparable mechanical and electrical performance.
Features
- Fully intermateable with comparable BNC UG/U connectors
- Twist-on connectors require no special tooling for application to the cable
- Choice of different dielectrics
- Low VSWR
Applications
- Broadband, networking, signal management
- Video distribution, including HDTV
- Industry standard interface, commercial and military aerospace
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Contact connection | solder connection | |
| Contact material | phosphor bronze | |
| Connector | BNC |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
