5413959-6 | AMP

BNC plug 50 Ω, crimp connection, angled, 5413959-6

Order No.: 71P9862
EAN: 4099891616045
MPN:
5413959-6
AMP

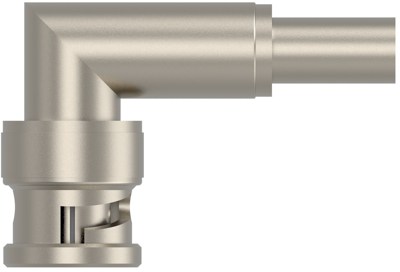

5413959-6 AMP Coaxial Connectors Image 1

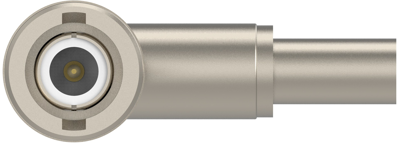

5413959-6 AMP Coaxial Connectors Image 2

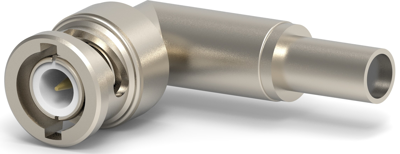

5413959-6 AMP Coaxial Connectors Image 3

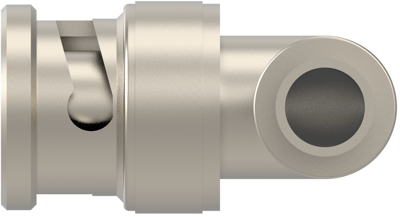

5413959-6 AMP Coaxial Connectors Image 4
5413959-6 AMP Coaxial Connectors Image 5
Image may differ
Unit Price (€ / pc.)
13.7088 € *
Available: 0 pcs.
Available in 5 Days: 276 pcs.
Leadtime: 29 Weeks **
Total Price:
13.71 € *
Price list
Quantity
Price per unit*
10 pcs.
13.7088 €
35 pcs.
13.4589 €
*incl. VAT plus shipping costs
**Subject to prior sale

BNC plug, 5413959-6, AMP

The 5413959-6 provides highly reliable, quick connect/disconnect coaxial connections. Exclusive single and O crimp terminations allow positive insulation grip and require no soldering, providing terminations at a very low overall applied cost.

Features

  • Low VSWR
  • Twist-on connectors require no special tooling for application to the cable
Technical specifications
Version plug
Design angled
Impedance 50 Ω
Contact connection crimp connection
Contact material Beryllium copper
Connector BNC
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
