5414337-1 | AMP

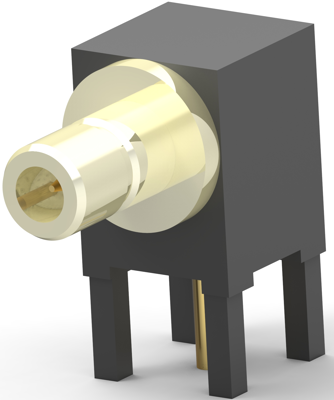

SMB panel socket 50 Ω, solder connection, angled, 5414337-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.8627 € *
Available in 12 Days: 1,414 pcs. - if ordered today
Total Price:
15.86 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8627 €
10 pcs.
14.2205 €
25 pcs.
13.3042 €
50 pcs.
12.4950 €
*incl. VAT plus shipping costs
Subject to prior sale
RF Coaxial connector, 5414337-1, AMP
The 5414337-1 is an SMB connector, 50 Ohm with standoff pads. This product is ideally suited for circuit miniaturization and is offered in a wide range of configurations including plugs, right-angle plugs, jacks, bulkhead jacks and adapters, as well as printed circuit board and solder jacks. Termination costs are kept to a minimum using plugs and jacks with a crimp center contact and hex crimp outer braid.
Features
- Snap-fit coupling for quick connect/disconnect
- Choice of Commercial or High Rel Connectors
- Fast easy cable assembly
- Low VSWR
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Impedance | 50 Ω | |
| Connector | SMB | |
| Design | angled | |
| Contact material | brass | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
